OS-LV-CM-CB-PI-CPS

OS-LV-CM-CB-PI-CPS

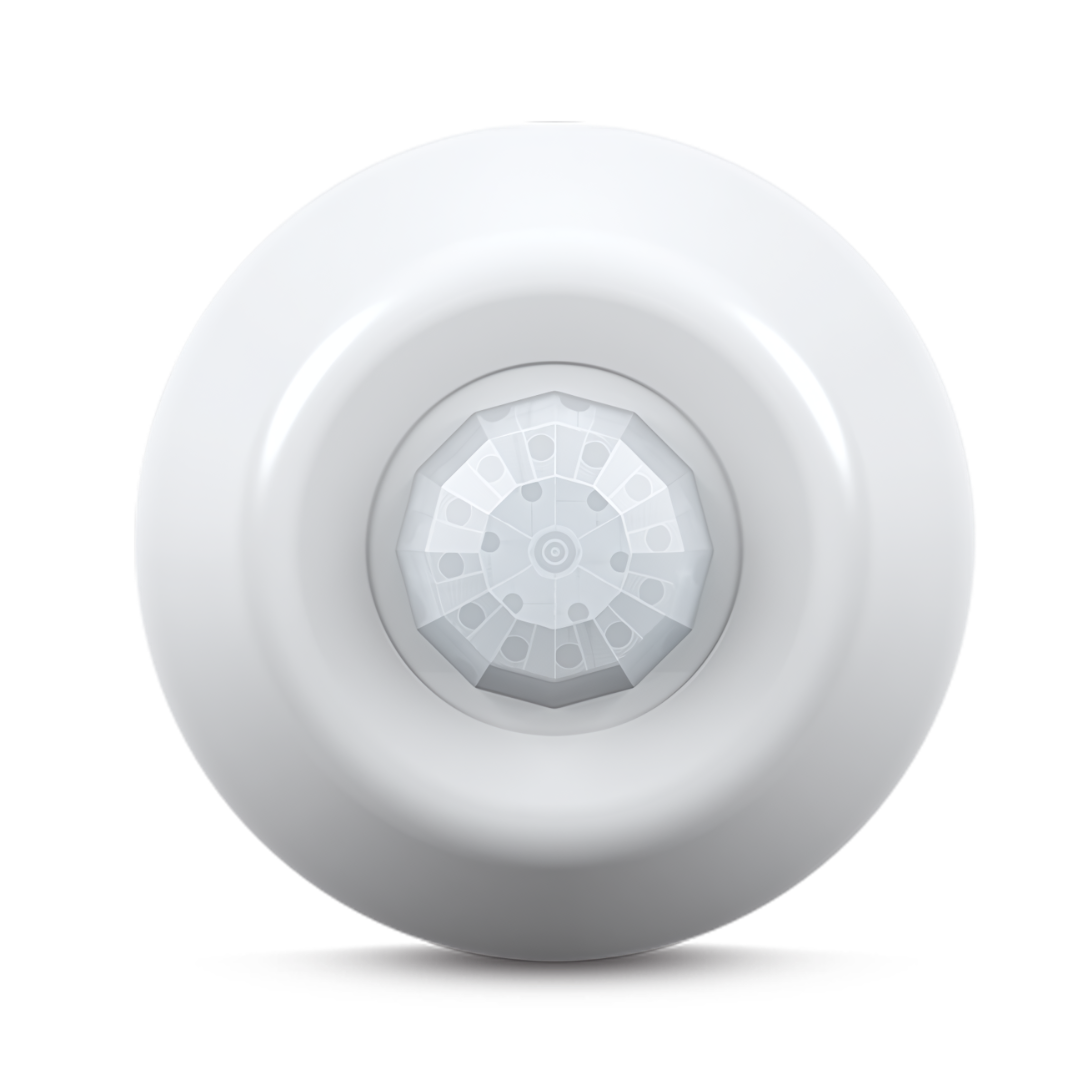

Ceiling Occupancy Sensor PIR Low Voltage Small

Casambi Enabled. Passive Infrared (PIR) Detection

Small detection area. Best choice for detection of small motions from sitting occupants (e.g., hand motion)~500 ft2 of coverage

360° Coverage Patterns
Four Mounting Methods
Mounting Nipple Attachment with Integrated Hole Saw
Convenient Test Mode and Adjustable Time Delays

Mounting Accessory Available:  OSA-T-CM

Download Specsheet

Contact Us

Accessoryahead

Product details

Dimensions
4.00” Diameter x 1.25” H
10.16cm x 3.17 cm
Electrical
OPERATING VOLTAGE: 12-24 VAC/VDC
CURRENT DRAW: 15mA (PIR models)

Wireless Casambi Range: Up to 150’ w/o obstructions
Frequency / Standard : 2.4 MHz / Bluetooth 4.0
Mechanical
OPERATING TEMP
32°F to 122°F (0°C to 50°C)

RELATIVE HUMIDITY
0-95% Non-Condensing, Indoor Use Only
Certification
cULus, ROHS, BAA, TAA
Accessory
OSA-T-CM
