OS-LV-CM-AN-DT-CPL

OS-LV-CM-AN-DT-CPL

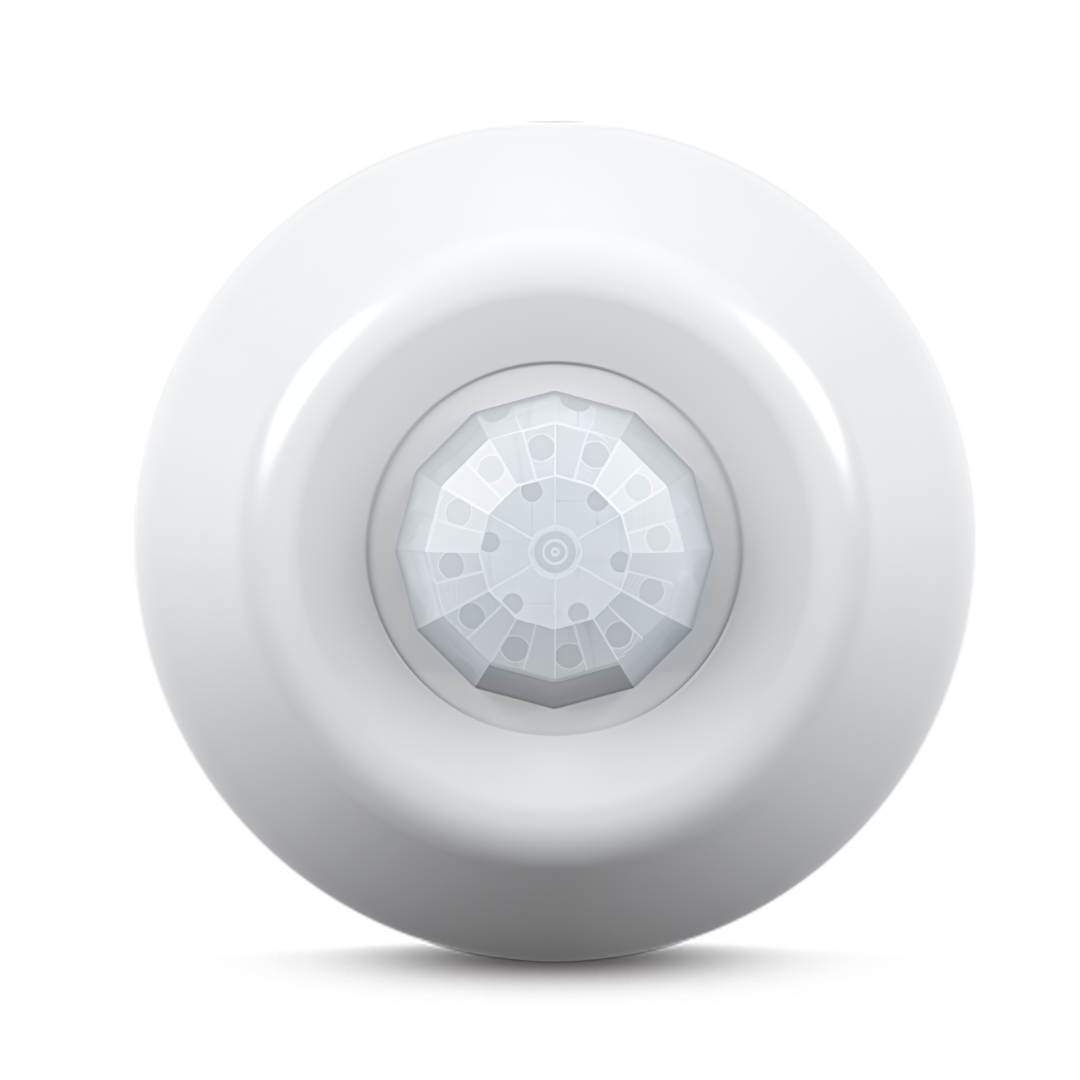

Low Voltage Ceiling Occupancy Sensor PIR/Acoustic Large

Large detection area. Best choice for detection of larger motion (e.g., walking) ~2000 ft2 of coverage

360° Coverage Patterns
Four Mounting Methods
Mounting Nipple Attachment with Integrated Hole Saw
Convenient Test Mode and Adjustable Time Delays

Mounting Accessory Available: OSA-T-CM

Download Specsheet

Color
Color: WHITE
Contact Us

Accessoryahead

Product details

Dimensions
4.00” Diameter x 1.25” H
10.16cm x 3.17 cm
Electrical
OPERATING VOLTAGE: 12-24 VAC/VDC
CURRENT DRAW: 10mA (Dual Tech. models)
OUTPUT: Logic High VDC (Occupied Mode)
DIMMING COMPATIBILITY: 0-10 VDC Ballasts or Drivers
ISOLATED RELAY RATING: 1A @ 30 VDC/VAC
Mechanical
OPERATING TEMP
32°F to 122°F (0°C to 50°C)

RELATIVE HUMIDITY
0-95% Non-Condensing, Indoor Use Only
Certification
cULus
Compliant with IEC 60929 Annex E.2
Accessory
OSA-T-CM
